Curtain wall systems clad a building envelope with glass and aluminum to protect the interior from the elements and creates a safe and comfortable work environment for the building occupants.

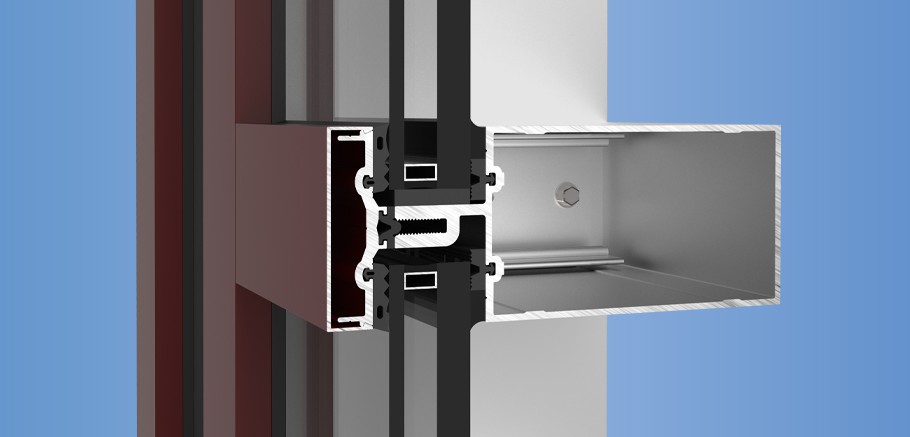

YHC 300 OG – Impact Resistant and Blast Mitigating Outside Glazed Curtain Wall System
The 3” face dimension ensures recommended glass clearances are maintained. Dry glazing options (for all design pressure ranges) slash installation time for quicker building dry-in.
FEATURES Hurricane Impact / Blast Mitigation / Rapid Building Envelope / Non-Thermal
BENEFITS Fully tested to ASTM and TAS standards Florida Product Approvals for large and small missile impact including HVHZ applications. Designed for single and multispan applications Achieve 17’ single spans at 90 PSF Accommodates monolithic and insulating glass Shallow Mullion Option Available
DATA Construction Use: New / Retrofit Sightline: 3″ Framing Installation Method: Shear Block Glazing Installation: Outside Glass Type: Monolithic / Insulating Glass Configuration: Front

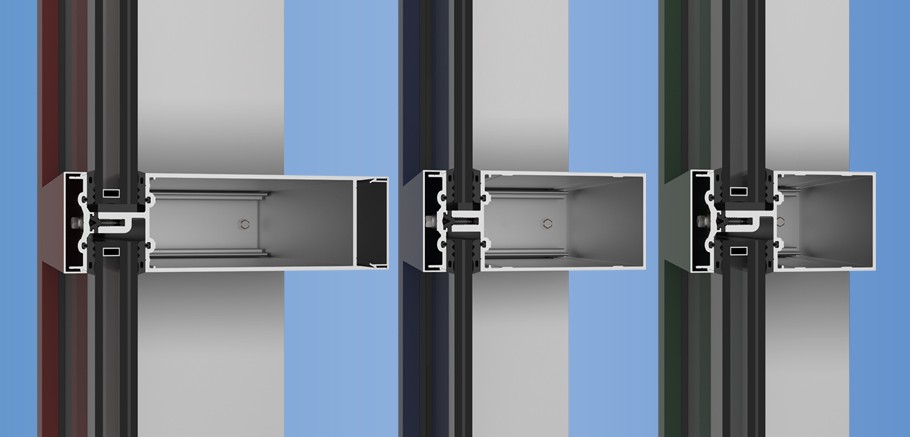

YHC 300 OG is a high performance curtain wall system designed and tested to provide innovative impact and blast solutions for a wide range of applications and design pressures from 45 PSF all the way to 130 PSF.
